Your computers must meet or exceed the minimum hardware and software specifications listed in the following table to be supported as a client computer for Prinergy Evo Workflow 8.2.
| | |
|---|
| Operating system | - Mac OS X10.11
- macOS Sierra (10.12)
- macOS High Sierra (10.13)*
- macOS Mojave (10.14)*
*Note: Process Template Editor and Preflight Profile Editor are not compatible with macOS High Sierra or macOS Mojave. Only the native Evo Client software is supported under these macOS releases. If you need to modify Process Template or Preflight Profiles, it is recommended to use Process Template Editor and Preflight Profile Editor on the Prinergy Evo server.
| - Microsoft Windows Server 2008 x64 R2
- Microsoft Windows Server 2012 R2
- Microsoft Windows 7 Professional
- Microsoft Windows 10 Professional
|
| Additional software | Oracle Java 1.8 | Java 1.8 |
| Processor speed | Intel Mac 2.5 GHz or faster | Intel Core 2 processor or faster |
| Memory | 4 GB RAM or more | 4 GB RAM or more |
| Free disk space | 20 GB or more | 20 GB or more |
| Network/protocol | 100Base-T (minimum) 1000Base-T (optimum) | 100Base-T (minimum) 1000Base-T (optimum) |
| Monitor resolution | 1280x1024 or higher | 1280x1024 or higher |
Note: It is your responsibility to acquire and install the number of Adobe Acrobat licenses needed for client workstations. To ensure that the Kodak plug-ins for Adobe Acrobat software can be copied into the correct folder during the installation process, install the Acrobat software on each Mac or Windows workstation before installing the Kodak plug-ins or the Prinergy Client.
Due to the fact that Evo Client is not compatible with Mac OS High Sierra (10.13) and above, Kodak will provide two instances of Parallels VM and Windows 10 Pro License Keys free of charge for Evo 8.2 contract customers.
Please follow the procedures below:
- Call your local Kodak Response Center to acquire Parallels & Windows license keys.
- You'll receive two instances of Windows 10 Pro license keys from Kodak. You'll also receive an invitation email with the two instances of Parallels VM license keys and the installer download link. The Parallels key activation should be done automatically while installing Parallels VM by clicking the link in the invitation email.
- If the Parallels installer prompts you to "Allow Access and Control your Mac", choose Apple menu > System Preferences > Security & Privacy > Privacy > Accessibility and select the Parallel’s checkbox.
- When you first launch Parallels Desktop on a Mac, it will detect that you have no virtual machines and will automatically offer to download and install Windows 10 Pro. See more details in Scenario 1 https://www.parallels.com/blogs/install-windows-10-parallels-desktop/
- If it doesn't direct you to the Windows 10 Pro (64 Bit International English) download link, follow Scenario 2 in https://www.parallels.com/blogs/install-windows-10-parallels-desktop/
- If none of the above options shows up, please follow the steps below to download a Windows ISO image on your Mac.
- Download the Windows 10 ISO media via the link https://kb.parallels.com/en/4729
- Click on Download Windows 10
- The Microsoft link (https://www.microsoft.com/en-us/software-download/windows10ISO) takes you to the page that you select the Windows 10 option and you’ll be presented with additional download options.
- Choose the required language and press the confirm button.
- You’ll then be presented with a download link for either the 32 or 64 bit option of the OS. Choose 64 bit.
- The download links provided will be available for 24 hours and from there Windows 10 Pro can be loaded into the Parallels VM software.
- After installing Parallels VM and Windows 10 Pro, install Evo Client on Parallels VM Windows 10 Pro.
- Turn OFF Public network firewall setting on Windows VM for Evo Client to connect to the Evo server.
- If the default recommended network setting under Parallels icon > Devices > Network > Shared Network blocks you to connect Evo Client to Evo Server, update the Network setting to Bridged Network > Default Adapter or Apple USB Ethernet Adapter so the Windows 10 Pro VM is on the same subnet with your Evo Server. See more info on https://kb.parallels.com/4948
Limitations:
- Please mount Evo Job Volume within the PC environment and Evo Processing (Refine, output, create Imposition etc) will work as it does on Mac environment by entering the Parallels Coherence Mode.
- On the Mac laptops with Retina display, text display in the Evo Process Template Editor appears to have no space in between the lines and the font size in drop down menu looks smaller than it should be. But this does not impact functionality.

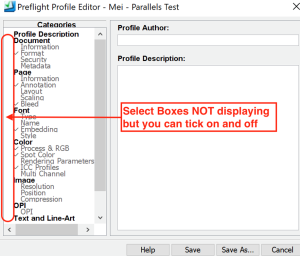

- On the Mac laptops with Retina display, you might notice the square check boxes are missing in the Preflight Profile Editor window but it will still allow you tick on and off.
Note: Please contact Parallels Support https://www.parallels.com/products/desktop/support/ from your region if you have any questions about Parallels. Contact Microsoft if you have any questions with Windows 10 Pro. Kodak only supports Prinergy Evo client to run on this Parallels VM.
